  • Audio Out of Sync with AW 4

    Hello,

    I exported an Mpeg-2 for Blu-ray from Edius with PCM audio. I then imported into AW 4 and let it do the Dolby AC-3 conversion. My Blu-ray has massive audio drift by the end of the hour and 15 minute program.

    I have never seen this before. Any idea what would cause this behavior? I have "closed GOP" marked upon export in Edius.?

    Thanks.
    Last edited by Bassman; 06-03-2014, 08:39 PM.
    Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

  • #2
    How much drift (e.g., in frames per hour)? Is it a 30 vs 29.97 thing?

    Is the drift only on the BD disc, or is it in the simulation within AW4 as well?

    The AW4 source file player?

    Have you tried AW5 to see if might be Aw4 specific?

    FWIW: The only time I have encountered significant audio drift is when the audio and video ran to different "clocks" such as when audio was from an analog tape playback. Some camcorders had an issue back 10-15 or so years ago with a few frames of drift per hour due to separate clocks for audio and video.

    Comment


    • #3
      I have a lot of work to get out this time of year, so I already deleted the file for safety sake :( So I can't check inside AW4 to see if the issue was in the playback window. I noticed the problem upon previewing the disc.

      I usually encode with T5 but after testing Edius has more true color and gamma. So I output from Edius with PCM audio. AW4 did the Dolby.

      This is a 720p60 file and I only have AW4.

      I think it was drift because the original file inside Edius had proper audio, so the file had to start in sync. Just wanted to bring this up. I do not have a lot of time to test but will when I get the chance. I will also document the gamma/color shift I am seeing with T5 compared to Edius as well.

      Gosh, will it ever be easy?
      Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

      Comment


      • #4
        Ths might be a stupid question, but why not let Edius encode the audio to AC3?
        Edius 8.53WG, Vistitle 2.8, Windows 10 x64 Pro Fall Update, Asus Z87 Pro, Intel i7-4770K, 16 GB 1600 Corsair Vengence LP RAM, Samsung 840 Pro SSD 256GB, WD Black 2TB media drive, Intel HD 4600 GPU, MSI GTX660 2GB VGA, Coolermaster Silencio 652 case, Noctua NH-U12S CPU cooler, Cakewalk UA-25EX USB audio interface, Cakewalk MA-15D monitor speakers, BM Intensity Pro 4K, PlextorPX-LB950SA BD writer, Dell U2410 Monitor

        Comment


        • #5
          I am doing that now. To me ears, the audio sounded better from the Pegasys AC3 encoding compared to Edius. Not hugely better though. So Edius is being used now.
          Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

          Comment


          • #6
            Update:

            I made a BD using AC-3 audio encoded from Edius and the video and audio still are out of sync.!!?

            So, if I put the original Mpeg-2 file and audio file I made the disc from on a timeline in Edius the audio is in sync.

            If I put the finished BD in my drive and add those files on the timeline the audio is OUT of sync.

            So why is AW4 mis-reading the Edius files?

            I will try a disc using Encore to see if this happens again.

            Any setting? Stumped. Thanks for your help.
            Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

            Comment


            • #7
              Here is what Encore said when I imported the file.

              Something is up with Edius' encoding...
              Attached Files
              Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

              Comment


              • #8
                Update:

                Program stream works fine. Elementary stream is not in sync. I do not know why but at least it is working.
                Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

                Comment


                • #9
                  1 If you create a Bluray from EDIUS is the audio in sync?
                  2 What is the exact framerate 59.94p or 60 p
                  3 If 60P what is your setting in application file export?
                  4 What are your exact project settings?

                  Thanks.
                  Steve

                  Get Support or the Latest version of EDIUS:
                  EDIUS support and Downloads

                  Comment


                  • #10
                    I have never experienced sync issues out of TAW5 or TAW4 and I feed it elementary streams (m2v + ac3) exported from EDIUS

                    I and O is always marked prior to export
                    Anton Strauss
                    Antons Video Productions - Sydney

                    EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                    Comment


                    • #11
                      I have not tried an Edius burn as I am trying to get this job out the door.

                      The project is 59.94. I will post a screenshot of the project settings tomorrow.

                      The problem seems to be centered around the mpeg-2 elementary stream output as HQX files keep sync as well as the program stream Mpeg-2 output.

                      Crazy. The video files were as much as six seconds shorter when input into Encore and AW4. This was a sequence clip that had the in and out setup, so no chance of audio being knocked out of alignment prior to encoding.

                      Thanks for your help. The disc is 1 hour and 15 minutes long.

                      I have been using T5 for a long time but after a little test, noticed the Edius encoder just looked better. So I decided to use Edius to encode my Blu-ray for this project.
                      Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10

                      Comment


                      • #12
                        I will test this with 59.94p

                        I assume you want to make a 1280x720 Blu-ray?
                        Anton Strauss
                        Antons Video Productions - Sydney

                        EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                        Comment


                        • #13
                          At 1:15 the difference between 29.97 and 30 FPS is 135 frames, or 4.4 seconds. Not exactly 6 seconds but...

                          I wonder if AW4 might be treating the video stream as 30 rather than 29.97?

                          Comment


                          • #14
                            Originally posted by dpalomaki View Post
                            At 1:15 the difference between 29.97 and 30 FPS is 135 frames, or 4.4 seconds. Not exactly 6 seconds but...

                            I wonder if AW4 might be treating the video stream as 30 rather than 29.97?

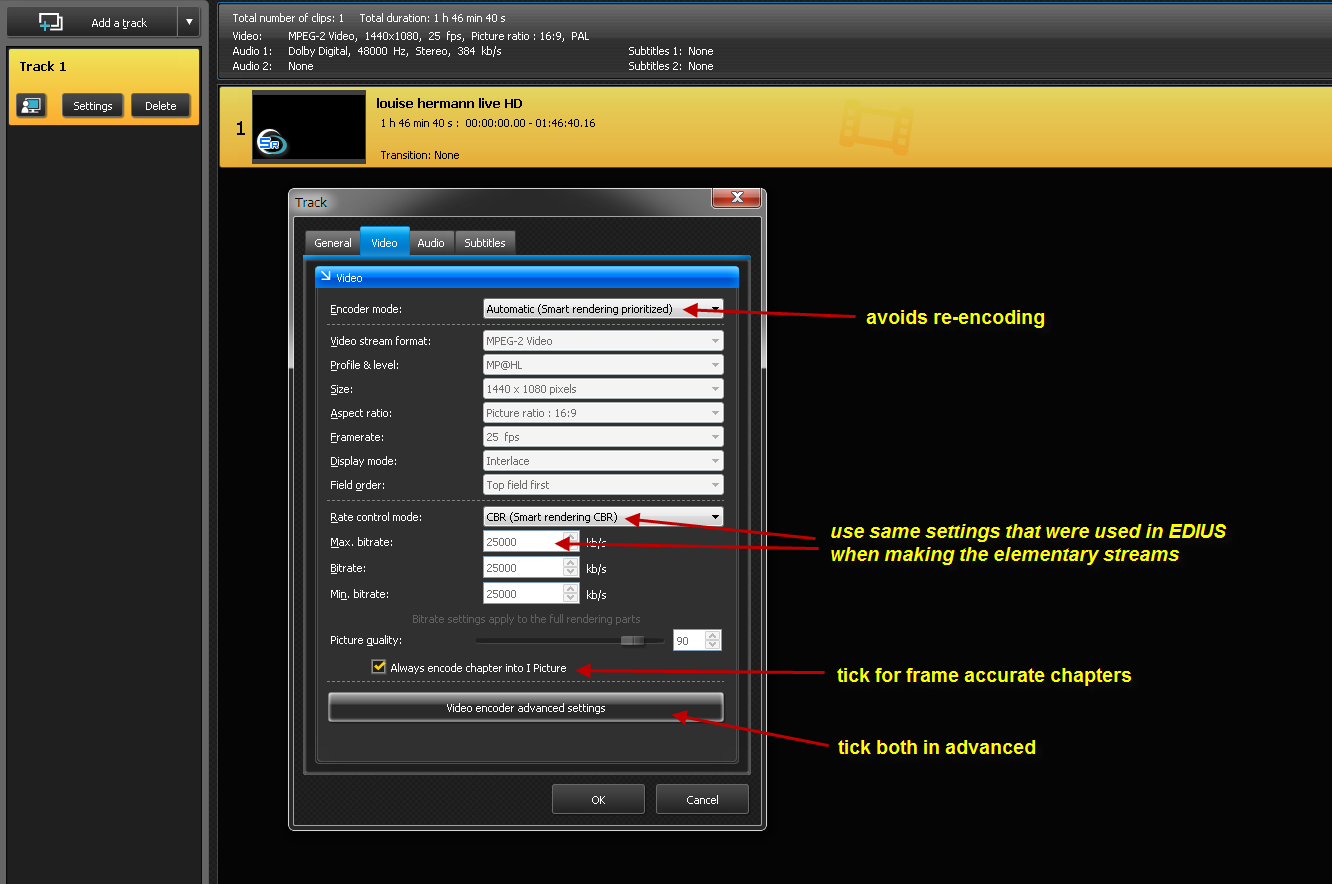

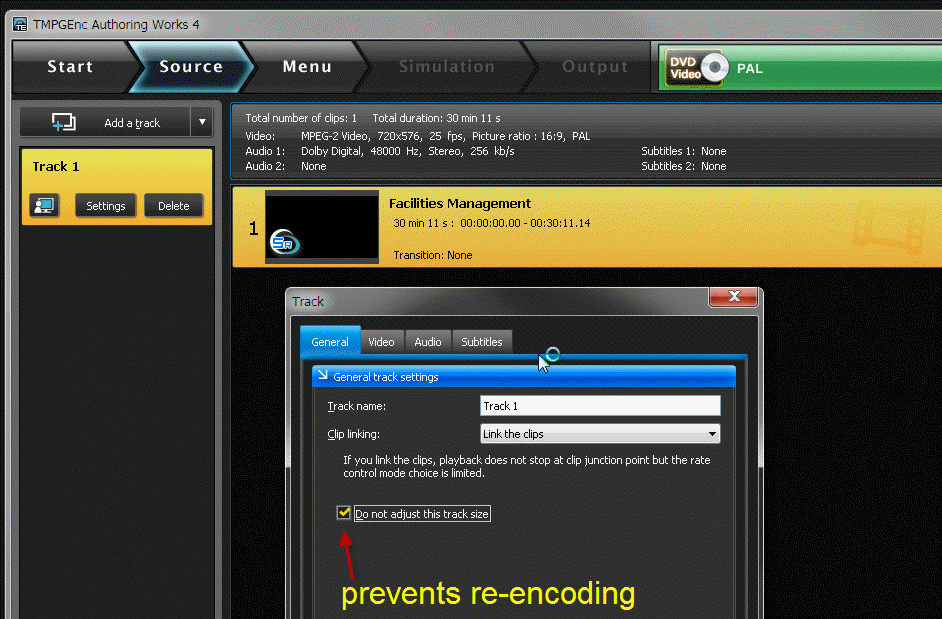

                            TAW4 does not alter the source files if you tell it to like I always do and as long as they are compliant, they will not be altered

                            Anton Strauss
                            Antons Video Productions - Sydney

                            EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                            Comment


                            • #15
                              Thanks guys. Yes, I am making 720p60 Blu-rays. Encore interpreted the length difference as well.
                              Asus Prime X299-A - Intel i9 7900x all cores @4.3GHz 2 cores @4.5GHz - 32GB RAM - NVidia GTX1070 - Edius 9 WG - BM Intensity 4k - Boris RED - Vitascene 2 - Windows 10
