  • Edius Broadcast and SP on the way

    Woohoooo! SP got a new user!

    I have being an using EdiusPro 4.6 with Storm 2 card, and since I can't preview RT while editing because all my jobs are done in HDV I finally decided to order the Broadcast version with SP card and the breakout box. I wonder how different it will be from Storm2 (I know Edius Software is basically the same as Pro version).

    I also ordered a new HP PC System not a Pro as I wish but nice Quad Core 2.66 with 4 Gb Ram, I'm sure it will work far better than my actual system. I'll be replacing drives with new ones for XP Pro downgrade.

    Any advices, or comments?
    Also, will it open my actual Edius proyects?

    Alex

  • #2
    Which SP board did you order? the PCI-X or the PCI-e version (SP SDI)??

    Just make sure that the "small" HP system has a PCI-X slot... I think that it hasn't and in that case the PCI-X version of the SP board will only work in SD projects.

    Your projects will be compatible with the new system, don't worry about that...
    Aristotelis Bafaloukos
    Systems Engineer, Video Editor, 3D Artist
    BEng (Hons), MSc, MBCS

    Ctrl+Alt+Delete

    Comment


    • #3
      be sure to set input ref to internal while editing, otherwise editing performance will be slower than a snail

      for example, when working in player preview window to mark in and out and then add to timeline, there will be a 3-5 second delay before anything appears on timeline, then when going from timeline back to player window, the same delay will happen

      with input ref on internal, it will be super fast, however it won't be locked to external ref, which does not matter during editing

      I wish there was a quick switch without having to go to hardware settings
      Anton Strauss
      Antons Video Productions - Sydney

      EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

      Comment


      • #4
        PCI-X version of the SP board will only work in SD projects if you put it in 32bit pci.
        If you put the SP in pci-x it will work in HD.

        Mb
        johannes
        JoiCam´s
        Edit station1: i7 6700K 4 ghz, 32gb ram, Edius 9 Workgroup, Davinci Resolve studio 16, 8GB GPU & Intensity Pro 4K
        2: 17" Laptop i7 w: Edius 9 Workgroup
        3: HPxw8600 dual 3ghz Xeon, STORM 3G, , Edius 7, 32 GB ram.
        4: Edius 7, Supermicro x7da8 dual 3ghz Xeon.
        Audio: Protools & Nuendo, M-Audio and Presonus interfaces, control surfaces and preamps, dual 3ghz Xeon. 16gb Ram.
        Studio monitoring: Mackie 1402-VLZ Pro mixer and Mackie HR824 Spk. Panasonic surround system.
        And more

        Comment


        • #5
          Thanks guys,
          Now, how do I know which board is it? according to BH site the requirements are 2 PCI slots. It does not mention PCI X.

          The HP Computer does not have PCI X.


          ANton, where do you change the settings, Windows hardware or is it a board software settings?


          Alex

          Comment


          • #6
            Technically the SP mainboard only requires a 64-bit PCI slot. It doesn't have to be PCI-X.

            The HD output board requires only a 32-bit PCI slot (normal run-of-the-mill PCI slot).

            What HP computer model are you intending to install this in to?

            Comment


            • #7
              Computer is
              HP m9250f
              2.66GHz Intel Core 2 Quad Processor Q6700 CPU
              4GB (4x1GB) RAM 1TB
              (2x500GB) SATA Hard Drive
              SuperMulti DVD Burner with LightScribe
              nVIDIA GeForce 8600 GT
              Windows Vista Home Premium (64-Bit)

              1x PCI Express x16
              2x PCI Express x1
              1x PCI

              I just got the package but wont be opening until I'm sure.



              Thanks.
              Last edited by avlab1; 06-05-2008, 11:39 PM.

              Comment


              • #8
                Originally posted by avlab1 View Post
                Computer is
                HP m9250f
                2.66GHz Intel Core 2 Quad Processor Q6700 CPU
                4GB (4x1GB) RAM 1TB
                (2x500GB) SATA Hard Drive
                SuperMulti DVD Burner with LightScribe
                nVIDIA GeForce 8600 GT
                Windows Vista Home Premium (64-Bit)

                1x PCI Express x16
                2x PCI Express x1
                1x PCI

                I just got the package but wont be opening until I'm sure.

                Thanks.
                Make sure of the type of board and you will have to move to XP Pro in order to use the board at all. There are NO drivers for hardware for Vista 32 or 64.
                Jerry
                Six Gill DV
                www.sgdvtutorials.com
                If you own the Tutorials and you need help, PM me.

                Vistitle YouTube Channel
                https://www.youtube.com/channel/UCMVlxC8Am4qFbkXJRoPAnMQ/videos

                Windows 10 Pro up to v.1803 Tweaks for Edius Users
                http://sgdvtutorials.com/WIN%2010%20...%20V.2.0.0.pdf


                Main System:: Azrock Z97 Extreme 6, [email protected], 32gb ram, Corsair H110, Win10 Pro 64, Samsung 850 pro, E7.5/8.5/E9 on separate SSD drives, HD Spark, Intensity Shuttle, 12tb RAID 0 on backplane ,2 BD, Benq 27 and Hanns-G 28 monitors, CC 2019, GTX 1080ti SC Black.
                Second System: EditHD Ultimax-i7, X58, [email protected], Corsair H80, Win764, 24gb ram, Storm 3g, Samsung 840 Pro 256, 4tb and 6tb RAID 0 on backplane, GTX 980ti Classified, Edius 9, Apple 30", Samsung 24", dual BD.

                Comment


                • #9
                  Thank Jerry for checking up. As I said in my first post, I'm planning to replace the hard drives for XP downgrade.
                  Actually I'm in that process right now. Even if it won't work with SP I decided to keep it for the other "gillion" things, as I dont like to install anything else in my edit system.
                  Anyways I would like to know if it does works (HD) whith these kind of slots.
                  Edius is the one I might be sending back in worst scenario, but can't open it.

                  Comment


                  • #10
                    Originally posted by avlab1 View Post
                    ANton, where do you change the settings, Windows hardware or is it a board software settings?


                    Alex

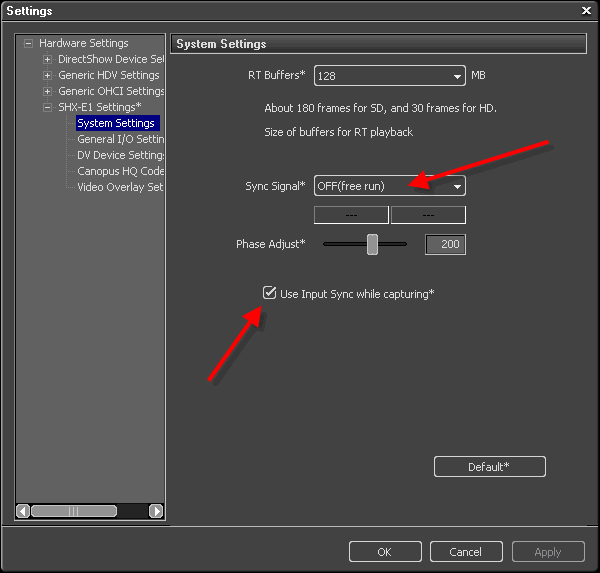

                    in Edius, go to settings, hardware settings/system settings

                    http://www.videoproductions.com.au/e.../ref-input.gif
                    Anton Strauss
                    Antons Video Productions - Sydney

                    EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                    Comment


                    • #11
                      Hmm, for that system only the NX Express (2 x1 PCI Express boards) or SP SDI boardset (1 x1 PCI Express, 1 32-bit PCI) would work.

                      Major differences between SP SDI and NX Express are that NX Express lacks:
                      • SD SDI in/out
                      • Balanced audio in/out
                      • RS-422 device control
                      • SD Component in

                      Comment


                      • #12
                        I decided to keep both, and get me another computer for SP. So guys now I want to be sure. Which PC will you recommend, the ultra expensive XW8600? or is there any other in that category at a better price?

                        Thanks again

                        Alex

                        Comment


                        • #13
                          what I have in my signature is way cheaper than XW8600
                          Anton Strauss
                          Antons Video Productions - Sydney

                          EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                          Comment


                          • #14
                            Originally posted by antonsvideo View Post
                            what I have in my signature is way cheaper than XW8600
                            Where can I get a system like that?

                            Comment


                            • #15
                              I built it myself

                              I am not sure where you are located, but there should be supermicro resellers worldwide, go to supermicro.com and see if you can find a reseller in your area
                              Anton Strauss
                              Antons Video Productions - Sydney

                              EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                              Comment
