3D Picture in Picture with transitions

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • 3D Picture in Picture with transitions

    I use 3D picture in Picture for almost every project that I do and it really irks me that when you have two clips together and you want to transition between them it will take the 3D Picture in Picture effect from the first clip and apply it to the second (and third and fourth etc.). This feature completly baffles me because I don't see why it needs to be the default. I can't even think of when I would possibly use it that way.

    I realize that you can make the clips into AVI files and then put the transition between them. But I often want to go back and change things to my picture in picture and so it's just a really big hassle to do it in that way.

    Is there any way to change this default or go around this in an easier way?!


    Thanks, Kristen

  • #2
    Kristen,

    I actually find that feature terrifically handy, as I can transition between different videos or stills within the same PIP.

    However, I know what you are talking about. The way I get around it is to put the video I'm transitioning to on another track. That way, the PIP does not carry over to the next clip and I can put any type of transition I want on the second clip.. I'm an old school editior and still use A/B type edting anyway, so it's a natural way to do it for me.

    Welcome to the forums.

    Tom

    Comment


    • #3
      Hi Kristen,
      Yes, it can be much easier, but because of the nature of Keyers our hands are (somewhat) tied. Keyers work slightly differently than in other apps, but technically I think the Edius application of them is the most logical. (as in they are not a filter (as in some apps))

      The trick is to containerize your 3dPnP Keyed clips within a Sequence.
      On the Timeline, select your pre-transition clip(s), Right-Click and pick "Add to Bin as Sequence". Do this again for your post-transition clip(s).

      Add your Transition and you're done!
      Rusty Rogers | Films
      >TYAN S7025 - 32GB RAM, 2 x Xeon X5690's, 4 x 10k video HD's, Win10 x64, BM DecklinkHD, nVidia TITAN, 12TB DroboPro w/iSCISI connection
      >RAZER BLADE - QHD+ - 16GB RAM, i7-6700HQ Quad, 512GB SSD, Win10 x64, GeForce GTX 1060 6GB

      An inglorious peace is better than a dishonorable war.
      Twain - "Glances at History" 1906

      Comment


      • #4
        Wow! thank you very much! I tried both and they are both easy and quick. I knew there had to be a way. I can't believe I have just let this frustrate me for the past 6 months!

        Comment


        • #5
          hmm I believe I spoke too soon. I'm doing a project at the moment and I'm running into problems with both.

          With Tom's approach, I have PIP on both clips and it won't let me apply the transition on the top clip unless it doesn't have PIP on it.

          Then I tried Rustys approach. The problem with this is, first it gives an end and beginning of the clip so in order to apply a transition I must first go back and make sure there is room at the beginning of the last clip and the end of the first clip so there is enough room for the transition the second problem is that I had a still picture and used PIP to put it in the lower left corner when I click "add to bin as sequence" it adds all of the black around the picture, thus when I put it back into the sequence it covers the logo that I have in the bottom right hand of the screen. I would put the logo on the top layer except that the logo is connected with a black background so that wouldn't work either.

          So....is there another way or am I doing something wrong?

          Comment


          • #6
            What you want to do is a very easy in the xplode pro composer multiple objects.
            Look at the screen grab on
            pip the left: pictures dissolving in to each other
            pip on the right: video
            back ground is still but can also be video
            two logo files flying in and out
            All realtime in sd on my system

            Really simple
            Attached Files
            Last edited by SRsupport; 05-06-2008, 10:46 PM.
            Steve
            EDIUS Trainer, Grass Cutter Gold
            A proud EDIUS EDITOR
            For more information on the Grass Cutter program please visit: http://www.grass-cutters.net

            Comment


            • #7
              hmmm, it seems as though we don't have that plug in

              Comment


              • #8
                You can download xplode Pro in the registered users section.

                Comment


                • #9
                  what transition do you wish to add in between 2 or more 3D PIP clips?

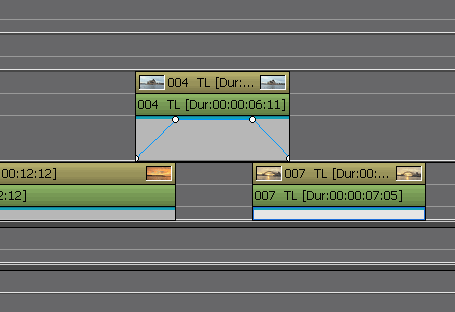

                  if dissolve, than this can be done easy with the keyer rubber bands
                  http://www.videoproductions.com.au/e...transition.gif
                  Anton Strauss
                  Antons Video Productions - Sydney

                  EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                  Comment


                  • #10
                    What you want to do is a very easy in the xplode pro composer multiple objects.
                    Will this work in HD?
                    Asus P5K64WS, Intel Core 2 Quad QX6850 Extreme CPU, Saphire HD 3850 512mb graphics, WDraptor160 OS, Highpoint Rocket raid 2310 4 x 500gig Seagate sata 2 se drives in raid 0, NXe and Edius 5.51 Imaginate 2.
                    Procoder 3.06 and various Prodad add-ons

                    Comment


                    • #11
                      Originally posted by antonsvideo View Post
                      what transition do you wish to add in between 2 or more 3D PIP clips?

                      if dissolve, than this can be done easy with the keyer rubber bands
                      http://www.videoproductions.com.au/e...transition.gif
                      I was wanting to do a transition other then dissolve.

                      and I will check the registered users section. Thanks

                      Comment


                      • #12
                        Originally posted by Imagine Video View Post
                        Will this work in HD?
                        I don't think it will.
                        Steve
                        EDIUS Trainer, Grass Cutter Gold
                        A proud EDIUS EDITOR
                        For more information on the Grass Cutter program please visit: http://www.grass-cutters.net

                        Comment


                        • #13
                          Originally posted by SRsupport View Post
                          What you want to do is a very easy in the xplode pro composer multiple objects.
                          Look at the screen grab on
                          pip the left: pictures dissolving in to each other
                          pip on the right: video
                          back ground is still but can also be video
                          two logo files flying in and out
                          All realtime in sd on my system

                          Really simple
                          Not simple for me I'm afraid mate! I am using XPlode Pro 4.51 with HD footage and for the life of me I can't find "A-B Two PiPs and Graphics" which I presume is in your Presets. Would someone please shed some light on this?
                          Thanks,
                          Don

                          Comment


                          • #14
                            I hope Edius 5 come with solution to chose to add mix or effect betwin clips on 3D PiP or other keyers. That be powerfull app...
                            Hope... :)
