Trouble fading an image?? help

  • Time
  • Show
Clear All
new posts

  • Trouble fading an image?? help

    Hi, I'm totally new to Edius and video editing, so please bear with me if this question is a silly one.. but i'm using a freeze frame as an opening image and have put titles onto it using Title Motion Pro.. but I want the image to fade out (not just snap out to black) whilst the title remains on the black screen for a second.

    I managed to find the fade in / fade out buttons buried in the animation settings, and have added them to the timeline.. but this feature wont seem to work on my image, only on a video file? am i doing something wrong or is there another way of fading out the image???

    Please help..
    Last edited by cephas; 04-22-2008, 12:48 PM.

  • #2
    Nevermind.. I found it in 3D PIP : )


    • #3

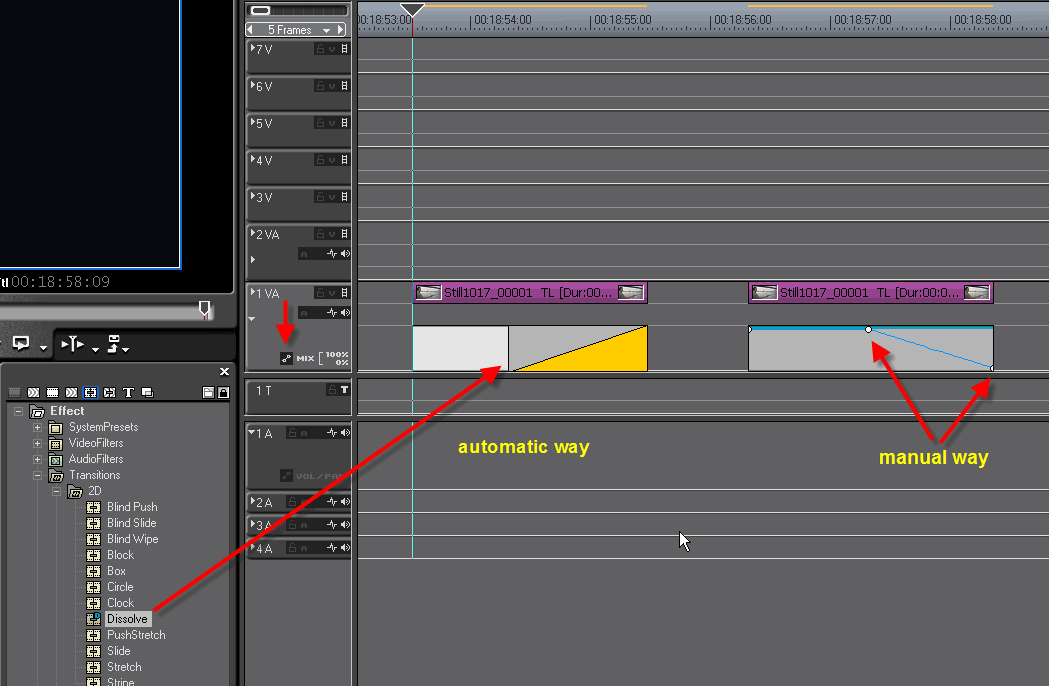

      drag a dissolve from the effects palette to the keyer track of the still

      each clip consists of 3 sections, video (top), audio (middle) and keyer (bottom)

      alternatively, unlock the rubber band in keyer and fade out manually
      Anton Strauss
      Antons Video Productions - Sydney

      EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro


      • #4
        oh.. awesome - thanks, i'll give that a go now : )


        • #5
          Another way is to put a colour matte between the image and the title and use the keyer track controls on this matte track to fade from colour to image and then back to colour matte. As Anton has shown. I tend to use this to fade from and to black as I have complete control of what the background colour is then. Playing with keyers on both tracks can create nice effects behind the title track. IF you put your titles on a video track you can use the keyer controls on that too.
