exported video gets jagged top edge

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • exported video gets jagged top edge

    Hi all,

    I have so many questions about exporting for various purposed, but I'll start with this one, which I assume is a simple one and I just don't get something:

    My goal is to have a clean output for web/internet delivery, the final format being quicktime h.264 which I do in Quicktime Pro. Either I export from the timeline directly to QT file, or to an uncompressed AVI that goes into Procoder express and convert to QT, which then gets recompressed in QT pro to h.264

    At any rate, When I export from the edius timeline (PAL SD 720 x 576) to an AVI (uncompressed) or to Quicktime using procoder express I always end up with a jagged top edge that I just don't know how to get rid of/clean up. I assume this jagged edge wouldn't be seen on a television etc. (overscan), but how to get a clean output for web delivery?

    Any advice is much appreciated. I am somehow lost in export options ****...

    Scot

  • #2
    you can use the layout tool in edius to crop a bit from top

    or you can use TmPro to draw a thin black rectangle at the top to hide the problem

    or you can use source crop in PCE or PC standalone

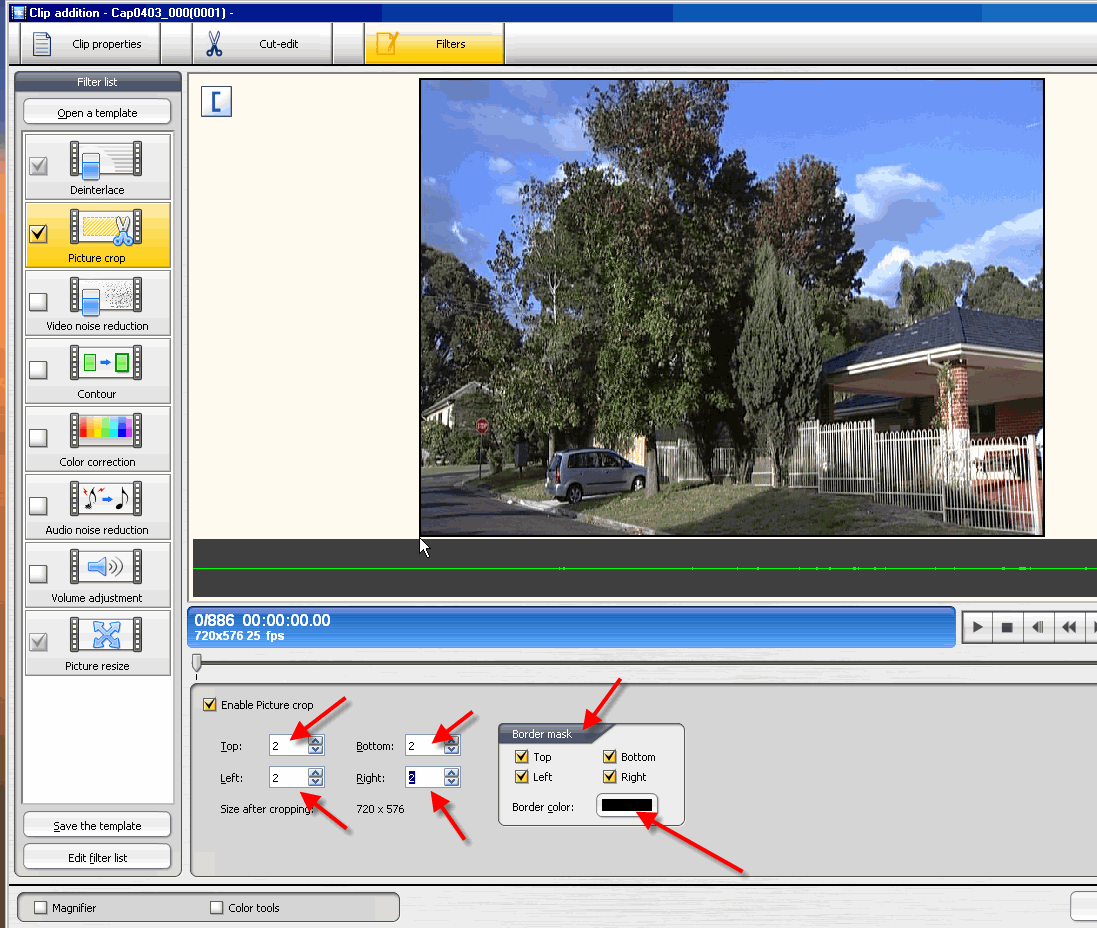

    or if you are a tmpeg user, use the mask tool, this will not distort the video and you maintain max quality
    http://www.videoproductions.com.au/edius46/T4-mask.gif
    Anton Strauss
    Antons Video Productions - Sydney

    EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

    Comment


    • #3
      Thanks for the quick response. So, the jagged edge is normal/expected?

      Originally posted by antonsvideo View Post

      or you can use source crop in PCE or PC standalone
      If I use source crop, does this mean the final export will be slightly stretched in order to maintain the 720 x 576 ratio?

      Again, thanks, and I'll look at tmpeg as you suggested.

      Comment


      • #4
        Originally posted by antonsvideo View Post
        or if you are a tmpeg user, use the mask tool, this will not distort the video and you maintain max quality
        http://www.videoproductions.com.au/edius46/T4-mask.gif
        Sorry, coming back to his. By tmpeg, are you referring to tmpgenc 4.0 xpress?

        thanks again,

        Scot

        Comment


        • #5
          yes correct

          I also have a Pal tutorial
          http://www.videoproductions.com.au/html/tmpeg4.html
          Anton Strauss
          Antons Video Productions - Sydney

          EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

          Comment


          • #6
            if you have Procoder3 you can do the same, be sure to untick Scale after crop
            http://www.videoproductions.com.au/p.../mask-crop.gif
            Anton Strauss
            Antons Video Productions - Sydney

            EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

            Comment
