    Hello,

    I have problems with config Xplode and Edius 4.54

    When I go to Xplode Edius config - 3D Render tab, the box shows ONLY D3D
    universal Renderer. I cannot choose something else. So I think Xplode does not see my Asus Geforce 8400 GS graphics card correctly.
    After pushing the config button I see 4 Render options from my Asus
    Geforce 8400 GS graphics card. When I select NVIDIA Geforce 8400 GS - Direct3D T&L Hal and click OK, nothing changes on the 3D Render tab. The box still shows D3D universal Renderer.
    It seems to me that is not right. The same happens with XplodePro
    config.

    Configuration:
    Board: Intel DP965LT
    CPU: Intel Core 2 Duo E4500 2.2Ghz
    Graphics: NVidea ASUS EN8400GS
    RAM: 2Gb Kingston DDR II-667

    NVidea Forceware driver 163.75_forceware_winxp_32bit_international_whql.ex e (because Canopus recommended version 162.18 or later)
    EDIUS PRO 4.54
    Update XplodePro For EDIUS v451

    Config:
    * Xplode Edius config, the tab Info shows Version 04.00.03
    * XplodePro config, the the tab Info shows Version 04.03.04

    What should I do?

  • #2
    What you are seeing is correct it means there is no other 3D renderer on your machine, by pushing the config button you are setting how the renderer will use your graphics card.
    If nothing is selected it means the renderer will use the Processor to render the filters.
    Try your Xplode to see if it works on other than alpha, if it does not the only way back to making it useful (Especially for HDV) is to use Windows Restore to a time before you set the render option.
    Makes it difficult if it has been working in SD and then you find it won't work in HD to get back!
    Regards Barry
    Win 10HP, EDIUS WG9.4, HD Spark, Boris RED 5, VMW6, Authorworks 6, Bluff Titler, VisTitler 2.8, NEAT 3/4, Mercalli 2/4, Vitascene, Izotope RX6 Plugin, NewBlue, Trend Micro AV
    GB GA-X58A-UD3R MB, i7 [email protected], 12G 1600mhz Mem, Samsung EVO-250G SSD, 3x2T RAID, GTX 970W OC, 2x24 inch LG Monitors
    Canon XH-A1/ Canon HF-G30, GoPro Hero3 Black, Edit @1920 50p HQ preset

    https://vimeo.com/user2157719/videos
    Laptop ASUS G752VT-GC060T Win 10HP, Edius WG8.53 Samsung M2 SSD 256G+1Tb HD,

    Comment


    • #3
      did you place the nvidia dll in the Stages folder of Xplode for Edius and another version for Xplode Pro

      Xplode Pro needs to be configured from a different panel to Xplode for Edius
      here are the Pro files if you don't have them
      http://www.videoproductions.com.au/e...idiaXPRO45.exe

      also, install Xplode Pro 4.6 first
      Anton Strauss
      Antons Video Productions - Sydney

      EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

      Comment


      • #4
        Originally posted by antonsvideo View Post
        did you place the nvidia dll in the Stages folder of Xplode ...
        Better not to do it... Nothing good can bring to nVidia card this old dll ... Only green stupid screen, better to stay with standard 3D render...
        Asus P8P67, Intel i7 2600K working at 4.50 Ghz, 16Gb Kingston RAM, Windows 7 64bit, 500Gb system drive, 320Gb Data drive and 1TB RAID-0 for AV, Edius NX Express, EVGA nVidia GTX 570 2.5CB DDR5, 750w ALTEC power and some creativity...

        Comment


        • #5
          I thought XPLODE does not support HD anymore? Only SD?
          TingSern
          --------------------------------------
          Edius 9.4 Pro, Lenovo P72 workstation laptop, 64GB RAM, Xeon CPU, Windows 10 Pro (64 bits), 2 x 2TB Samsung M2.NVME and 1 x 4TB Samsung SSD internal. Panasonic UX180 camera, Blackmagic 4K Pocket Cinema, Blackmagic Pocket Cinema

          Comment


          • #6
            Originally posted by tingsern View Post
            I thought XPLODE does not support HD anymore? Only SD?
            75% works fine in HD and is real-time on my system
            Anton Strauss
            Antons Video Productions - Sydney

            EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

            Comment


            • #7
              Thanks guys, here some more information about my problem..

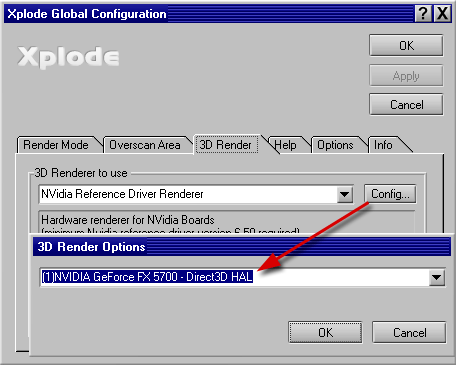

              This site shows a NVidia Reference Driver, which I don’t have on my screen.
              http://www.videoproductions.com.au/e...eProConfig.gif

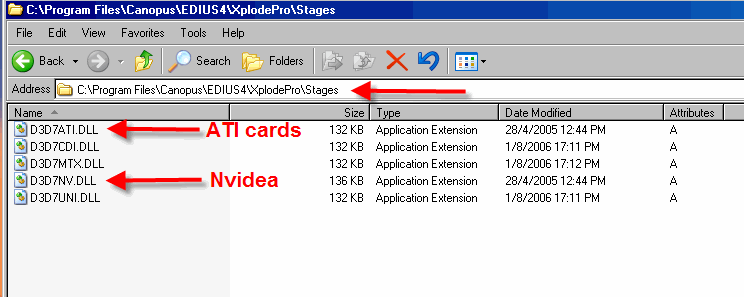

              And this link told something about D3D7NV.dll
              http://www.videoproductions.com.au/e...ePro-files.gif
              I don’t have that dll either.

              Comment


              • #8
                This is simple to solve.
                I have seen this on my system doing a clean install and installing the lates 4.6 xplode pro.

                Solotution.

                Go to Program files/ canopus/edius4/xplodepro/

                doubleclick fxconfig in that folder
                go to 3 d renderer and chose the one for you card.,.

                click apply and then ok.

                Now it will show up everywhere.

                Steve

                Ik had dit verhaal ook gewoon in het nederlands kunnen vertellen. :)

                Maar je moet natuurlijk eers de dll voor je video card copieren in the stages folder zoals de anderen al vertelt hebben.
                Last edited by SRsupport; 03-04-2008, 03:17 AM.
                Steve
                EDIUS Trainer, Grass Cutter Gold
                A proud EDIUS EDITOR
                For more information on the Grass Cutter program please visit: http://www.grass-cutters.net
