Edius capture problem: 2 clips instead of 1

  • Filter
  • Time
  • Show
Clear All
new posts

  • Edius capture problem: 2 clips instead of 1

    Hello to everibody. I am using Edius from just one year, and I am satisfied. But now something is happened, or a setting is changed: capturing from any DV camera, when I stop the capture, I obtain 2 clips, one of only 1 frame, and the other with the right footage. I could bypass the problem deleting anytime the unwanted clips, but I feel stupid to do so. I am quite sure that is a wrong setting, but my experience is very little, and also re-installing the application doesn't solve the problem. Somebody has got the same problem?
    Excuse me for the poor english and best regards.

  • #2
    when I capture from a DV or DVCAM tape, I get hundreds of clips, but I like it like that, each camera start/stop becomes a clip, makes editing very simple

    what are your file divide settings in Edius application settings/deck settings?

    in my case, I have "when the recorded time data changes" ticked

    unticking all, should give you one file, unless the DV tape does not match the project settings

    if DV tape has 32k audio and the project setting is 48k audio, then you can expect problems like that

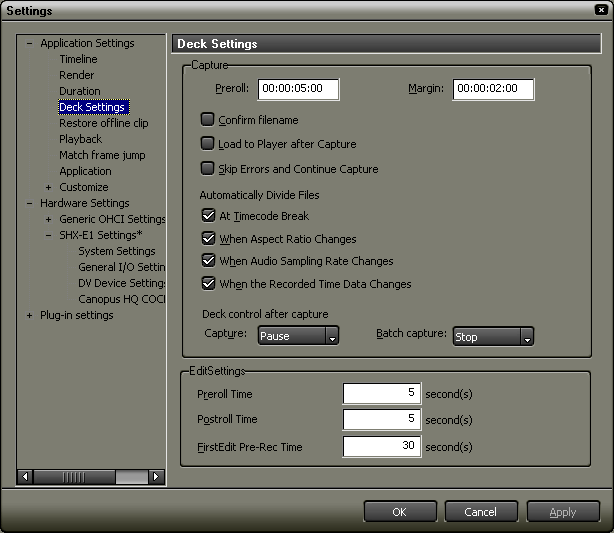

    location of deck settings
    Anton Strauss
    Antons Video Productions - Sydney

    EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro


    • #3
      I have also had this problem in Edius (with earlier versions). At the time I captured the same tape twice, once with Edius and once with DV Capture. This produced a different number of clips between the two programmes. About 90 to 95% of the clips were the same; some of the difference was accounted for by single frame clips. I posted about it at the time on the old forum - the one before this one. My "solution" is to delete the single frame clips and not to worry about them.
      DVC laptop: W870CU i7; 17.3" 1920x1080; 2x 1TB 7200rpm SATA notebook drives; Edius 8.5WG; Windows 7.


      • #4
        ...and I thought i was the only one who got this problem. Likewise i just delete them but dont know why i get them.

        Sometimes i get single frames in the middle of a long capture eg a stage show. The camera hasnt been stopped but all of a sudden there are 2 maybe 3 single frames in the middle. Weird


        • #5
          In a 1,5 hour capture (2 tapes), I have found 3 wrong scene splits: one resulting in a clip of 1 frame, one of 9 frames and one of 11 frames. I am using Edius 4.51c, Project settings Full HD:
          Frame size : 1920 x 1080
          Frame rate : 25,00( 25/1 )
          Pixel aspect : 1,0000
          Field order : Top Field First
          Rate : 48000Hz
          Sample size : 16 Bit
          Channel : 2
          Rendering format : Canopus HQ AVI
          Over Scan Size : 0 %

          My camera is a Sony HDR-HC1E (PAL). I am capturing HDV footage directly converted into Canopus HQ clips (setting "fine").

          As the clips have neither gaps nor audio problems, I can use them on the timeline if I want. It is just troublesome when applying filters for example.

          Edit: I am using the same scene split settings as mentioned by Anton
          Edius Workgroup 8.53


          • #6
            I find Edius' scene detection very sensitive and it picks up any tape errors as scene changes.

            I'm going tapeless ASAP!
            Rusty Rogers | Films
            >TYAN S7025 - 32GB RAM, 2 x Xeon X5690's, 4 x 10k video HD's, Win10 x64, BM DecklinkHD, nVidia TITAN, 12TB DroboPro w/iSCISI connection
            >RAZER BLADE - QHD+ - 16GB RAM, i7-6700HQ Quad, 512GB SSD, Win10 x64, GeForce GTX 1060 6GB

            An inglorious peace is better than a dishonorable war.
            Twain - "Glances at History" 1906


            • #7
              Is it possible that you have timecode breaks? Lack of timecode can cause capture problems.
              Jeff Chandler
              High School Broadcast Adviser
              Freelance videographer & editor


              • #8
                I've been using EDIUS since its initial release and am now at v4.52 about to upgrade to 4.54. Captureing usually starts with a very short and noisy clip of 1 or 2 frames and then settles down to create the single long clip I intend to get. The short noisy clip at the start has been there in all versions, but early versions also seemed to throw in such clips frequently througout the capture. The one or two frames at the start really isn't a problem for me.
                Fred D
                Win 7 Pro-64 bit, EDIUS Workgroup 8.5, Intel Ivy Bridge i5, ASUS P8Z77-V-LK, 8GB Kningston DDR3, Pioneer BDR-209UBK, EVGA NVIDEA GEForce GT630, Corsair TX750M 750w Power Supply, 4 WD Black HDD for 3.15TB, ACEDVIO, Spark HD, eSATA controller, ANTEC 300 case.


                • #9
                  Edius capture problem: 2 clis instead of 1

                  Thanks to everibody, and specially to Antonsvideo: his solution is effective!!
                  I have tried it and now I capture just 1 clip at time: it was a just "deck setting" to deselect !....
                  Best regards.
