  • External 1TB software raid

    I just set up a G-TECH esata 1TB external hard drive. It consists of a very high quality enclosure with a nice quiet fan. It comes with a small PCI esata adapter card. It has two Hitachi 500G hard drives. I have them in a 1TB software raid. In PassMark hard disk test the G-Tech esata 1Tb software raid is getting a instantaneous disk speed of 15.6 MB-Sec. For comparison my 75G 10,00 RPM Raptor system drive is getting 6.8.MB Sec, and my Seagate 300G 7200 RPM applications drive is getting 4.3MB Sec.

    The G-TECH is relatively expensive but it's high quality. I wanted to get my video editing drive out of my computer box. I'll have quad core processors, Gforce 8800 Video card, two hard drives, and the NX Express in it already. . . that's a lot of heat. This way the video drive will be sitting on my desk top in a nice relatively cool enclosure.

    When I bought this thing I remembered many years ago buying a 500MB hard drive for about what I payed for this, and thinking that surely I'd never fill up that 500MB drive!

    Tilford

  • #2
    15.6MB/sec?
    Surely it must be much higher. Take a look at the speeds again (What are you using to do the tests?)

    If it's RAID0 and connected via 3.0Gbps eSATA, then you can easily hit above 100MB/sec.

    Comment


    • #3
      yeah... it's too slow, unless he measured in Megabyte.
      Asus P5WDH Deluxe w/E6600 - 4GB Corsair - 8800GTS - 1TB & 1.5TB (2x750GB RAID 0) - Antec P180 + Trio 650W - XP Pro w/sp3 - NX PCIe w/Expansion Card - Edius 5.51
      Asus P6T i7 920 @3.6 - 12GB Corsair Dominator - GTX275 - 1.5TB & 3TB (2x1.5TB RAID 0) for Video - Antec P183 + Corsair HX-750W - Win7 - Edius 6.07 - Firecoder Blu - PC3.05.91 - BDR-203 - TMW5 & TAW5
      Asus P6T i7 930 - 12GB Corsair - GTX260 - 1TB & 1TB WD Black for Video - Antec P183 + TPQ-850W - Win7 - Edius 6.07 w/HD Spark - BDR-205

      Comment


      • #4
        these are terrible results, you have a serious problem

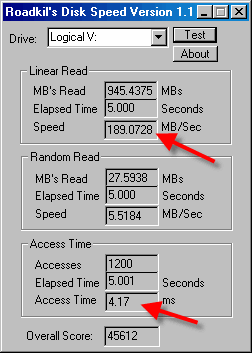

        I am getting 91 MB/sec on my C drive and 189 MB/sec on video drive raid0

        http://www.videoproductions.com.au/e...iskspeed-C.gif

        http://www.videoproductions.com.au/e...iskspeed-V.gif
        Anton Strauss
        Antons Video Productions - Sydney

        EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

        Comment


        • #5
          Test in Megabytes

          This bench mark gives the results in Megabytes over a period of time or compared to the number of megabytes transfered to or from the disk. What I was most interested in was the comparison to my other drives. In smokes the Raptor, which is what I expected. The performance seems pretty good. Off that drive I'm playing HD and also uncompressed SD very smoothly.

          Comment


          • #6
            could you download diskspeed from www.roadkil.net (it is free) and let us know the results
            Anton Strauss
            Antons Video Productions - Sydney

            EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

            Comment


            • #7
              Nice app.
              I tried it and got 49 for my raptor 36gb 10,000rpm C: drive and 112 for my raid 0 drive, which is the one Edius says is too slow to capture to!!!

              Graham
              www.myvideoproblems.com
              Microsoft MVP in Digital Media

              Edius 4.61, NX Express, xp sp2

              Comment


              • #8
                Graham,

                Will Edius capture properly if it does not divide files? (my issue)

                Rusty
                Rusty Rogers | Films
                >TYAN S7025 - 32GB RAM, 2 x Xeon X5690's, 4 x 10k video HD's, Win10 x64, BM DecklinkHD, nVidia TITAN, 12TB DroboPro w/iSCISI connection
                >RAZER BLADE - QHD+ - 16GB RAM, i7-6700HQ Quad, 512GB SSD, Win10 x64, GeForce GTX 1060 6GB

                An inglorious peace is better than a dishonorable war.
                Twain - "Glances at History" 1906

                Comment


                • #9
                  I capture whole mini dv tapes in one go and have it as one file and it is fine for me.
                  I haven't had to do more than an hour yet, as all the analogue conversions I've done are short pieces.
                  I capture to my raid drive.
                  www.myvideoproblems.com
                  Microsoft MVP in Digital Media

                  Edius 4.61, NX Express, xp sp2

                  Comment


                  • #10
                    I've captured 276 minute DV tapes in one file without problems before. They are large single files. They were about 59-60GB in size.

                    I prefer to use scene detection if the DV data carries correct timestamp information.

                    Comment


                    • #11
                      Re: Disk Speed Results

                      Here are the results on the G-Sata external 1TB software raid

                      Linear Read
                      MB's Read 505.5625
                      Elapsed Time 5.000
                      Speed 101.3052 MB/Sec


                      Random Read
                      MB's Read 18,5000
                      5.003
                      3.6976

                      Access Time
                      Accesses 782
                      5.005
                      6.41

                      Overall Score 15964

                      Comment


                      • #12
                        Originally posted by manbart View Post
                        Here are the results on the G-Sata external 1TB software raid

                        Linear Read
                        MB's Read 505.5625
                        Elapsed Time 5.000
                        Speed 101.3052 MB/Sec


                        Random Read
                        MB's Read 18,5000
                        5.003
                        3.6976

                        Access Time
                        Accesses 782
                        5.005
                        6.41

                        Overall Score 15964
                        your drive speed is fine
                        Anton Strauss
                        Antons Video Productions - Sydney

                        EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                        Comment


                        • #13
                          Originally posted by skier-hughes View Post
                          Nice app.
                          I tried it and got 49 for my raptor 36gb 10,000rpm C: drive and 112 for my raid 0 drive, which is the one Edius says is too slow to capture to!!!

                          Graham
                          your drive speed is fine

                          I get higher speed because I use 15000rpm SCSI drives, using such a drive as a C drive makes the PC very zappy, look at the access time of my drive and then compare to yours
                          Anton Strauss
                          Antons Video Productions - Sydney

                          EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                          Comment
