Fades getting messed up

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Fades getting messed up

    When I use the timeline buttons to fade out the end of a clip but then later have a need to edit an earlier part of the timeline, the video part of the fade out usually gets messed up and I have to reset it with the rubber band.

    Generally all I am doing is to shorten or lengthen a few clips to the left, though sometimes I might transpose positions of two of them however I don't see how this affects the fade out clip which has not been touched.

    BTW this is using just a single VA track.

    Anyone else experiencing this?
    Claire

    Edius 8.53 Workgroup, DVC Built i7 5960X 8 core Haswell-E Unlocked, Win10 Pro 64 bit, Gigabyte GA-X99-UD4, 32GB DDR4 RAM, RTX 2080 Ti 11GB, Decklink 4K Extreme 12G, TMPGEnc Movie Plug-in AVC, Eizo 31" ColorEdge CG319X HDR 4K monitor

  • #2
    the opacity fades do not move with clip trims and possibly never will

    if you use the dissolve on keyer track as fade in/out, it will never get messed up when trimming

    plus, seeing the dissolve on keyer track is a great visual indication that the fade is in place

    do I make sense?
    Anton Strauss
    Antons Video Productions - Sydney

    EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro 21H2

    Comment


    • #3
      from a other thread about "Fade In" ...http://ediusforum.grassvalley.com/fo...ad.php?t=18112
      please, look at the linked threads in the "Quote"

      for the one or other job, you can play with the "Fade In" / "Fade Out" funktion
      available over button or shotcuts
      this button or shotcuts set automatically the with yellow-arrows marked rubberband points
      on the position from the CTI

      If you play the fade in/out, and the duration it is not nice for you, or your client.
      (added today: or you shorten or lengthen clips )

      It is not a "effect" ==> therefore you can not delete him => therfore gives not a "traditional duration windows"
      But each new set fade in/out on new CTI position, overwrite automatically the old "Fade In" (Out)

      http://ediusforum.grassvalley.com/fo...hlight=fade+in
      http://ediusforum.grassvalley.com/fo...hlight=fade+in
      http://ediusforum.grassvalley.com/fo...hlight=fade+in
      there are more thrads as the 3 above
      search with keyword: fade in
      inside from the Boolean operators " ...like: "keyword" ....ergo "fade in"
      CentralEurope aka Hans
      voluntary / unpaid moderator from the german GV-forum ... Edius 4.61 up to Edius 9.xx
      i9-7980XE 18cores/36threads - M.2 960PRO 512GB - M.2 970PRO 1TB - div. 2 or4TB disks - 32GB DDR4-3600 - GTX 1080 8GB - Win_10prof
      [the AMD 1950X 16cores / 32 threads = go return because of massive problems, Not only I had these problems]

      Comment


      • #4
        Thanks both, I like your idea Anton but what about the audio part of the fade?
        Claire

        Edius 8.53 Workgroup, DVC Built i7 5960X 8 core Haswell-E Unlocked, Win10 Pro 64 bit, Gigabyte GA-X99-UD4, 32GB DDR4 RAM, RTX 2080 Ti 11GB, Decklink 4K Extreme 12G, TMPGEnc Movie Plug-in AVC, Eizo 31" ColorEdge CG319X HDR 4K monitor

        Comment


        • #5
          rubber band fade :)
          Anton Strauss
          Antons Video Productions - Sydney

          EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro 21H2

          Comment


          • #6
            But that's all the button does! Heh! I am back to square one again.

            Welll not really since at least the video part of the fade can no longer be upset, hmm... so it's a half solved problem? <grin>
            Claire

            Edius 8.53 Workgroup, DVC Built i7 5960X 8 core Haswell-E Unlocked, Win10 Pro 64 bit, Gigabyte GA-X99-UD4, 32GB DDR4 RAM, RTX 2080 Ti 11GB, Decklink 4K Extreme 12G, TMPGEnc Movie Plug-in AVC, Eizo 31" ColorEdge CG319X HDR 4K monitor

            Comment


            • #7
              Wait a minute, I think it's okay...
              Claire

              Edius 8.53 Workgroup, DVC Built i7 5960X 8 core Haswell-E Unlocked, Win10 Pro 64 bit, Gigabyte GA-X99-UD4, 32GB DDR4 RAM, RTX 2080 Ti 11GB, Decklink 4K Extreme 12G, TMPGEnc Movie Plug-in AVC, Eizo 31" ColorEdge CG319X HDR 4K monitor

              Comment


              • #8
                at least the video part of the fade can no longer be upset
                hmmm, what did you mean with this words, you know my fractal english

                schould work ... for only audio ...only video ...or both

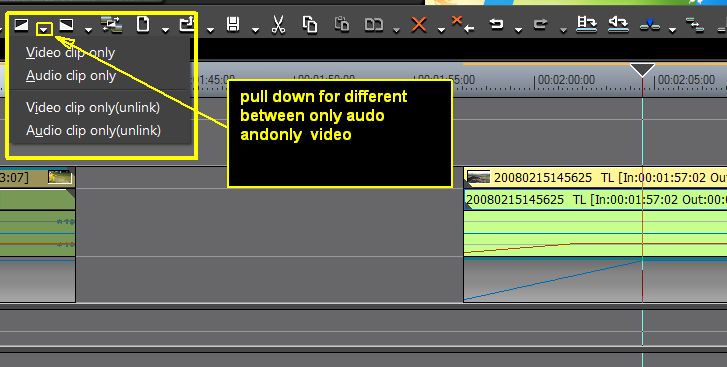

                schould work over => pull down from the button

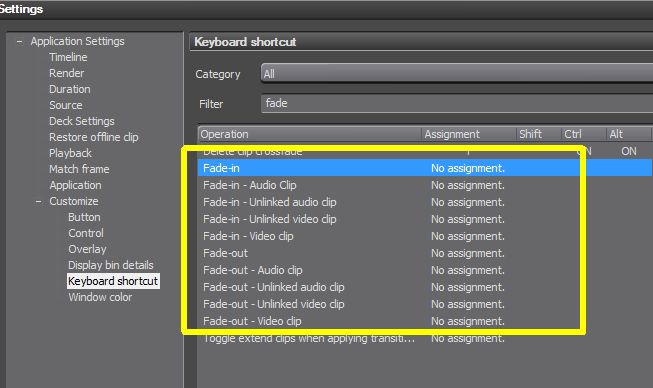

                schould work over => your "self to customice" shortcuts







                greetings from Central€urope
                CentralEurope aka Hans
                voluntary / unpaid moderator from the german GV-forum ... Edius 4.61 up to Edius 9.xx
                i9-7980XE 18cores/36threads - M.2 960PRO 512GB - M.2 970PRO 1TB - div. 2 or4TB disks - 32GB DDR4-3600 - GTX 1080 8GB - Win_10prof
                [the AMD 1950X 16cores / 32 threads = go return because of massive problems, Not only I had these problems]

                Comment


                • #9
                  Hans, I know how to use the video and audio fade buttons and I already have keyboard shortcuts I made for them a long time ago, this is not the problem, thanks for your efforts all the same, no.. the problem is that the fades I made with them are messed up when I shorten or lengthen any clips earlier in the timeline.

                  Anton, trying out your suggestion, I had a problem and could not apply the dissolve to mixer part of any clip that a fade out had previously been applied to and removed.

                  Resetting it's rubber bands or using 'Initialize all' was not enough. This had me confused until I clicked 'Delete parts > Mixer > Transparency' when the mixer part then accepted the dissolve. This done I added a rubber band audio fade to match the duration of the video dissolve and hey.. yes it works! Audio fade is no longer affected altering length of earlier clips, somehow seems the audio fade is now tied to video dissolve.
                  Claire

                  Edius 8.53 Workgroup, DVC Built i7 5960X 8 core Haswell-E Unlocked, Win10 Pro 64 bit, Gigabyte GA-X99-UD4, 32GB DDR4 RAM, RTX 2080 Ti 11GB, Decklink 4K Extreme 12G, TMPGEnc Movie Plug-in AVC, Eizo 31" ColorEdge CG319X HDR 4K monitor

                  Comment


                  • #10
                    I have since noted that if dissolves are placed between clips to the left of the one that needs the fade out dissolve the mixer tracks for these clips all becomes common/contiguous so it seems not possible to add a dissolve to the end of that mixer track if there are any existing opacity adjustments on it.

                    However I think I can work around that.
                    Claire

                    Edius 8.53 Workgroup, DVC Built i7 5960X 8 core Haswell-E Unlocked, Win10 Pro 64 bit, Gigabyte GA-X99-UD4, 32GB DDR4 RAM, RTX 2080 Ti 11GB, Decklink 4K Extreme 12G, TMPGEnc Movie Plug-in AVC, Eizo 31" ColorEdge CG319X HDR 4K monitor

                    Comment


                    • #11
                      you can clear keyer opacity by clicking the keyer track and pressing delete

                      what I like about keyer dissolves at clip edges is the fact that they move with any trim and they are a great visual indicator

                      maybe we can request in a future version that the opacity fades show an indication on the clip and that the fade ripples with the trim
                      Anton Strauss
                      Antons Video Productions - Sydney

                      EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro 21H2

                      Comment
