  • Blurry preview

    I got a blurry preview window in edius, and i also have a blurry picture om my external preview, is there a way to fix this, I tried all the ovelay settings in edius and within my graphics driver, same result ?
    A computer with a lot of stuff in it :)

  • #2
    Are you using an EDIUS hardware board for output?

    Comment


    • #3
      I am running the s-video output from the bay, more, it looks like everything is slightly out of focus, even if a take an template from titlemotion and export it as a tga file..then in my paint/photo app it looks out of focus too, nothing else does in my computer
      Last edited by Ludde; 07-22-2007, 02:16 PM.
      A computer with a lot of stuff in it :)

      Comment


      • #4
        Which hardware board are you running the S-Video from?

        Comment


        • #5
          It is NX PCI-X
          A computer with a lot of stuff in it :)

          Comment


          • #6
            By chance are you using Standard Definition clips in a High Definition project, or outputting SD to an HD display?

            Comment


            • #7
              I use Standard definition clips, I work in Pal 720x576 (16:9), and I don´t have my project setting to HD, and I do not output to an HD-display
              A computer with a lot of stuff in it :)

              Comment


              • #8
                make and model of external monitor?
                Anton Strauss
                Antons Video Productions - Sydney

                EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                Comment


                • #9
                  It is A standard Philips widescreen TV
                  A computer with a lot of stuff in it :)

                  Comment


                  • #10
                    The Phillips 16:9 TV has a sharpness control on the S-Video input menu, can you check what it is set to

                    also, make sure the Phillips is not set to any zoom mode, this would instantly soften the picture
                    Anton Strauss
                    Antons Video Productions - Sydney

                    EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                    Comment


                    • #11
                      It i set as it should, sharpness control goes from 1-7, have tried them all, and I don´t have it in zoom mode when working with edius, have to investigate further !!
                      A computer with a lot of stuff in it :)

                      Comment


                      • #12
                        have you tested the source footage by connecting your source player/camera directly to Phillips?

                        how was the footage captured to Edius? composite? Y-C? Firewire?
                        Anton Strauss
                        Antons Video Productions - Sydney

                        EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                        Comment


                        • #13
                          Yes, I have looked at it from the cam, looks ok, I captured it via firewire, the one on the bay, I have also ripped some dvd i made some years ago, just to see, all look the same
                          A computer with a lot of stuff in it :)

                          Comment


                          • #14
                            do you have the component out board for the NX? Its output would be way sharper when connected to component in of Phillips

                            in any case, can you export 1 sec of your timeline to Canopus DV Avi and upload it somewhere so we can check it out

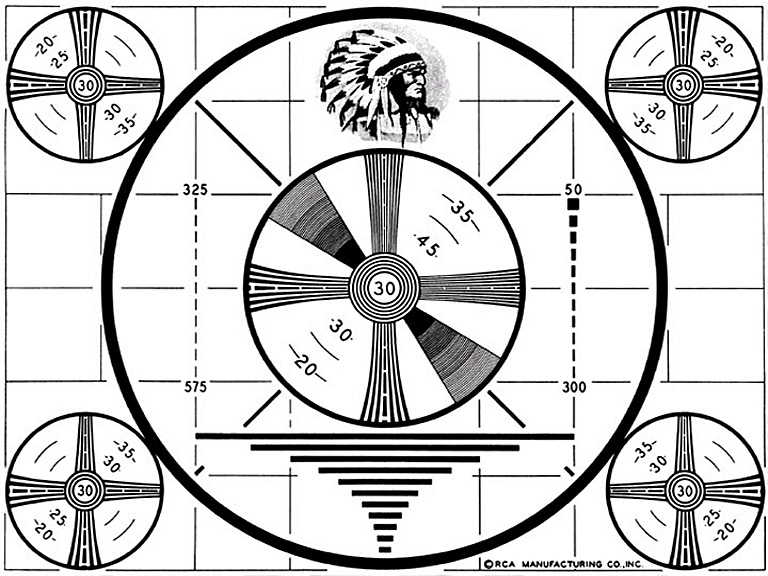

                            also, place my resolution chart on your timeline and see what vertical resolution your monitor is capable of
                            http://www.videoproductions.com.au/e...Resolution.jpg

                            anything below 400 lines would be bad
                            Anton Strauss
                            Antons Video Productions - Sydney

                            EDIUS X WG with BM Mini Monitor 4k and BM Mini Recorder, Gigabyte X299 UD4 Pro, Intel Core i9 9960X 16 Core, 32 Threads @ 4.3Ghz, Corsair Water Cooling, Gigabyte RTX-2070 Super 3X 8GB Video Card, Samsung 860 Pro 512GB SSD for System, 8TB Samsung Raid0 SSD for Video, 2 Pioneer BDR-209 Blu-ray/DVD burners, Hotswap Bay for 3.5" Sata and 2.5" SSD, Phanteks Enthoo Pro XL Tower, Corsair 32GB DDR4 Ram, Win10 Pro

                            Comment


                            • #15
                              Yes, I have the component out board, was thinking of that too, about upload, I have a place in a few days, was something wrong with my password
                              A computer with a lot of stuff in it :)
